drysdale

capabilities

Towage

Salvage

Cargo Transfers

Fire Fighting & Oil Pollution Control

specifications

Primary Information

Name: Drysdale

Year Built: 2014

Vessel Type: Tug

Flag: Australian

IMO: 9688233

Trading Area: Within 200NM Offshore

MMSI: 503011850

Call Sign: VJN 4608

Builder: Jaya Coastal Group

Build Location: Malaysia

Classification Society: BV Reg. Nr: 23383T

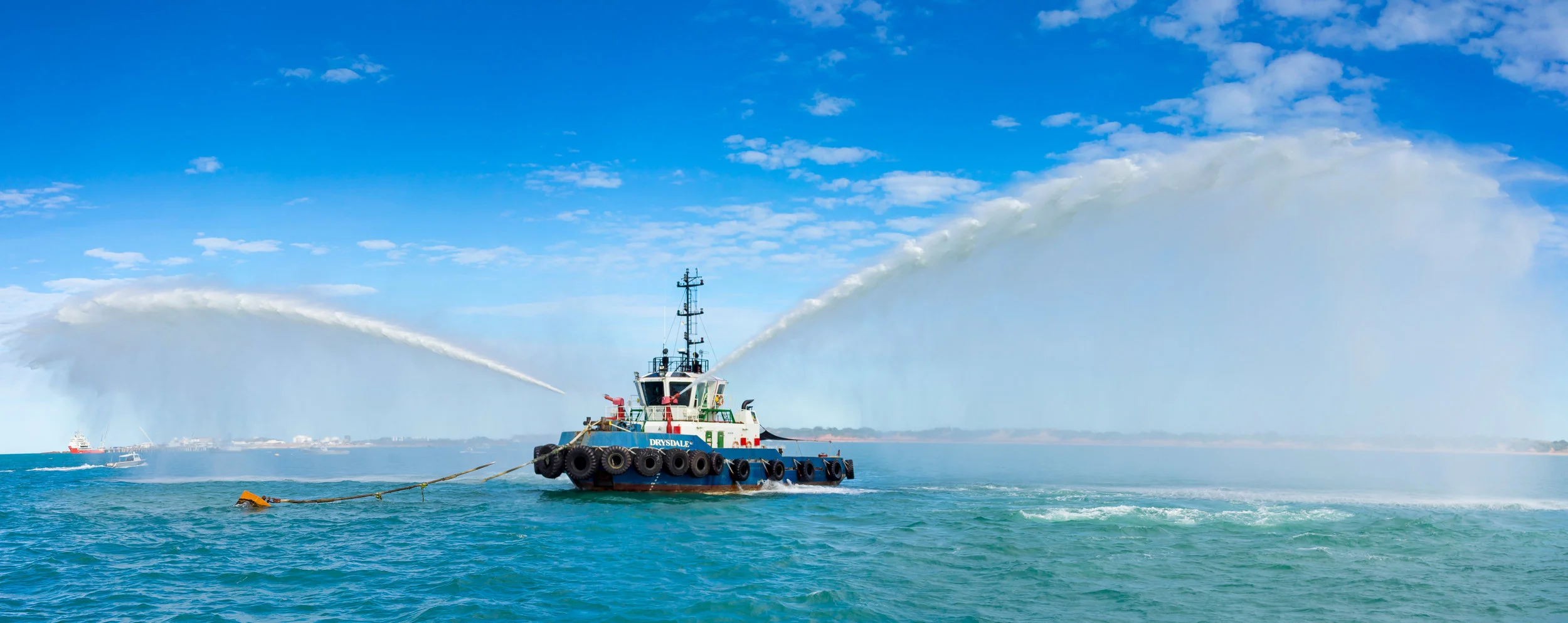

Other: Ship handling Tug with Fire Fighting Capability and Oil Pollution Control

Dimensions

Length Overall: 28 Metres

Full Load Draft 4.012 From USK

Beam: 10 Metres

GRT: 299T Tonnes

Depth Moulded: 4.8 Metres

Dead Weight: 268.197T

Machinery

Propulsion: Azimuth Thruster x2 Berg Bat318 CP

Total Power: 2400 HP, 1790.4 KW

Main Engines: 2 x Yanmar 6N21A-SW

Generator: 2 x 125 kW Caterpillar C6.6 @1500 rpm

Speed and Consumption Performances

Full Operating Speed: 13 Kts

In Port: 200 Lts/Day

Economic Operating: 10 Kts

Bollard Pull: 30 Tonnes

Capacities

Fuel: 132,500 Litres

Dirty Oil: 7,200 Litres

Water: 50,000 Litres

Clear Deck: AFT deck 8 x 8m

Water Ballast: 67,200 Litres

Bilge Water: 7,200 Litres

Lube Oil: 11,600 Litres

Sullage: 7,200 Litres

Nautical and Communication Equipment

Radar System: Furuno RDP-152

HF Radio: Furuno

Depth Sounder: Furuno FCV-627

VHF Radio:1 x Kelvin Hughes, 1 x Icom IC-M 304

DGPS: Furuno GP-32

UHF Radio: N/A

Compass: Daiko Keiki T-150B

GMDSS: N/A

Chart Plotter: Maxsea

Searchlight(s): Remote control KESKER

Sat Comms: N/A

Deck Equipment

AFT Tow Winch: 30mT Brake holding 70T static

Tow Hook: 30mT Tonnes

FWD Tow Winch: 30mT Hydraulic Single Drum, Brake holding 70T static

Cargo Discharge Pumps

Fuel Cargo: 5M3/Hr @20M Head

Freshwater: 30M3/Hr @30M Head

Accommodation

Berths: 10

miscellaneous equipment

Fire monitors with foam dispersant nozzles Foam-5.6 m3 + Disp-5.6 m3
